智利 巴西 秘鲁 阿根廷等国家螺纹头ISDB-T电视高清数字机顶盒
| Hardware |
|
CPU:
| Memory: 32X16Mbit DDR2: Frequency1066 |
| Flash: 32M bytes |
| TUNER: Rafael R836 |
| Front Panel:
USB 2.0 Embedded One Host,
4-digit LED display on front panel
red LED Standby, green LED Lock
Panel KEY, POWER, CH+ , CH-
|

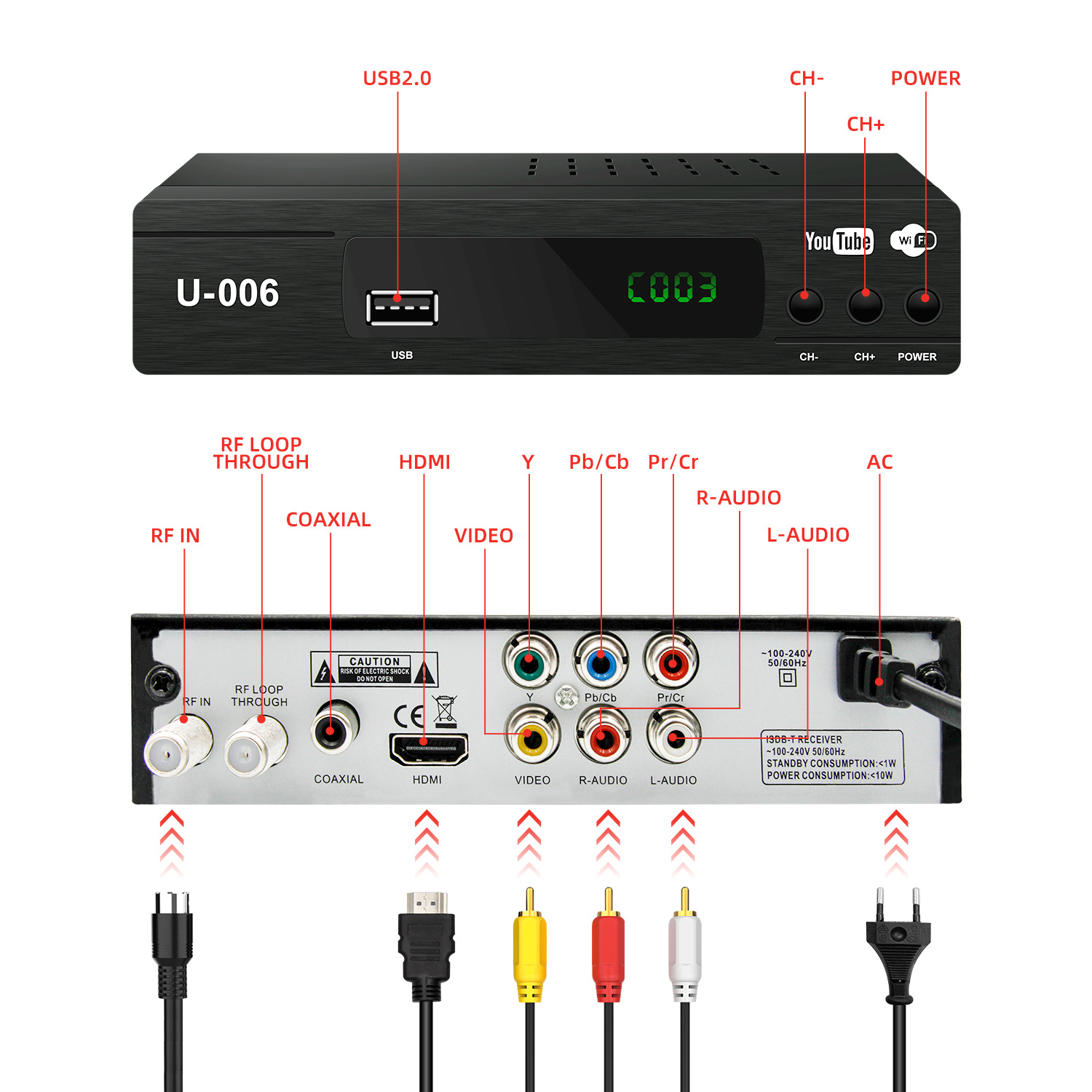

| Rear Panel:
Tuner RF input connector EC-type IEC169-2 Female
Tuner RF Loop through connector IEC-type IEC169-24 Male
HDMI V1.3/V1.4
RCA CVBS AL AR Connector x1
Ypbpr RCAx1
Coaxial x1
Power AC100~240V 50Hz/60Hz
|
| Software Features |
| •used for any ISDB-T countries like Brazil, Peru, Argentina, Chile, Venezuela, Philippines Ecuador |
| •Supports all ISDB-T broadcast (1, 3, 13 segment), MPEG-2/MPEG-4 AVC/H.264 HD/SD Video , DiVX compliant |
| •Support 3D interface |
| •Support teletext /subtitle /multi-language |
| •Supported 7-Day EPG function, VBI Teletext |
| •AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 |
| •USB 2.0 for PVR, TIMESHIFT, software upgrade and media files playback |
| •Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P |
MSTAR-MSD7805 (128 pin) MIPS 34Kf@600MHz
|
